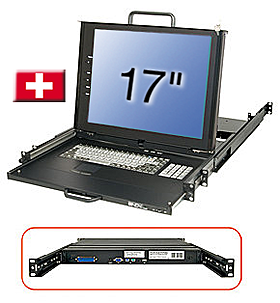

1U keyboard, touchpad and 17" VGA LCD screen for 19" Rack cabinet
Log in to your business customer account to see prices.
Business customer loginNot a business customer yet?
Register now
A LCD KVM Console allows an operator to conveniently control and manage a PC, server or KVM switch from a single 19" rack mountable keyboard, touchpad and LCD display console.
The Lindy 17" LCD KVM Console Dual Rail is a hardware solution that allows direct control of a computer from an all-in-one Terminal with keyboard, touchpad and 17" monitor. It's ideal for system administrators who want to control one or multiple computers or servers from a single, centralised location.
The Console is designed to be easily installed into 1 Unit of a 19" server cabinet with front to back rail distance from 57 to 87cm (unit depth is 46cm). Display and keyboard are on two different drawers in Dual Rail design, can be slided independently on each other. Key locking mechanism to keep it closed and avoid unauthorized access, perfect in server rooms and data centres, while metal drawer with ball bearing slide rails on each side are essential within industrial environments.
17" LCD screen supports VGA resolutions up to 1280x1024, auto-off function when the display is closed or when no signal is present. Screen adjustments can be access via OSD pushing the buttons near the panel.
The Lindy LCD KVM Console can be connected to a PC or server via VGA to get the video signal, USB or PS/2 (selectable manually by the built in dip switch) ports to control it via keyoboard and touchpad, and to a Lindy KVM Switch for LCD Console via the dedicated Centronics port always on the rear panel. In this way an administrator can access and manage for instance 8 or 16 servers occupying only one unit in a 19" rack.
*Please Note: the Centronics Female port on the rear panel can be used only in combination with Lindy KVM switches for LCD Console. Other stand alone switches can be connected to VGA, USB or PS/2 ports.
Specifications:
Connectors:
Physical properties:
Miscellaneous:
Package content:
Purchasing information:
Short Manual 19" Installation |
released: 2012-07-19 | » Download (103.26KB) |
French short 19" installation manual |
released: 2012-07-19 | » Download (105.94KB) |
Full 19" Installation Mnaual |
released: 2008-07-28 | » Download (770.12KB) |
Short Manual 19" Installation |
released: 2012-07-19 | » Download (104.21KB) |
